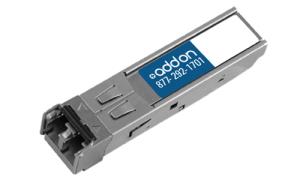

Transceiver Module Paloalto Pan-sfp-lx Compatible Sfp - Sfp (mini-gbic) - Gige - 1

Introduction

Add-On's Small Form Factor Pluggable (SFP) transceivers are designed to exceed OEM system requirements. All products are guaranteed 100% compatible and will not void OEM Service/support programs. Our SFP Transceivers utilize industry standard bi-directional serial optical data communication protocols such as Gigabit Ethernet or Fiber Channel reaching speeds up to 8Gbps.

All our SFP Transceivers are compliant with the Multi-Source Agreement (MSA) ensuring compatibility with a wide range of networking equipment. Select your choice or Copper or Fiber versions that support Fast Ethernet and Gigabit Ethernet speeds

- 100% OEM Compatible
- 100% Tested
- Conforms to IEEE 802.3z standard
- Class 1 Laser Product Compliant with the Requirements of IEC 60825-1 and IEC 60825-2
- Compliant with Multi-Source Agreement (MSA)
- RoHS Compliant

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

1000 Mbit/s

Interface type

SFP

Single-mode fiber (SMF) supported

Yes

Fiber cable diameters supported (core/cladding)

9/125 µm

SFP transceiver standard

LX

Networking standards

IEEE 802.3z

Cabling technology

1000BASE-LX

Features

Hot-Plug support

Yes

Certificates

Compliance certificates

RoHS

Certification

MSA

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

10 - 85%

Weight & dimensions

Width

13.4 mm

Depth

56.5 mm

Height

8.5 mm
